MODELG2-250

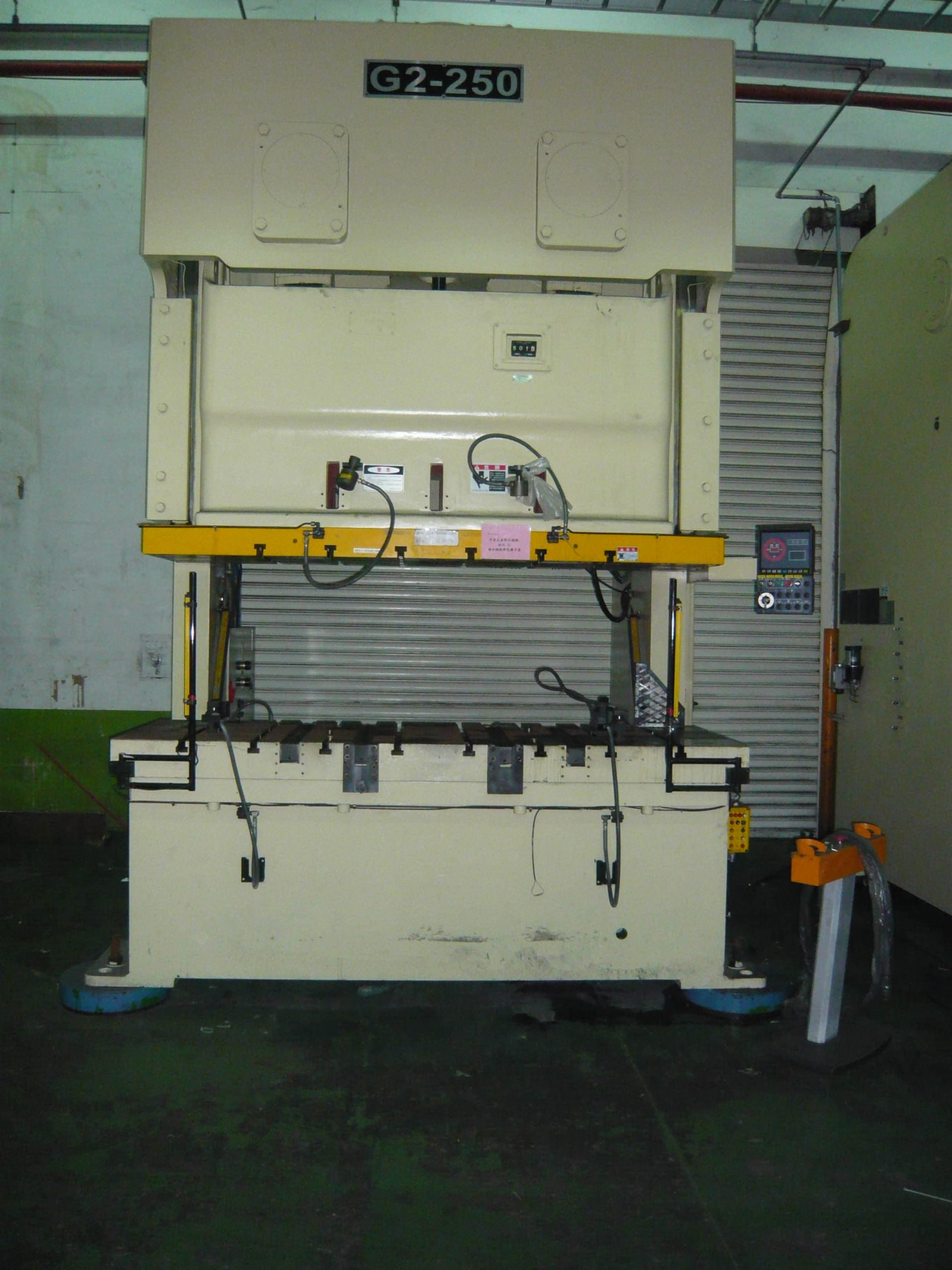

Refurbished Chin Fong 250-ton Straight-Side Double Crank Stamping Press

Request a Quote

model
capacity
table area
slide area
diameter of slide
stroke length
shut height
adjustment of slide
main motor
S.P.M
option

G2-250
250tons
2700x900mm
2500x700mm
3×50
280mm
550mm
120mm
25hp /4p
25-35 s.p.m.
option

Specifications subject to actual products.
